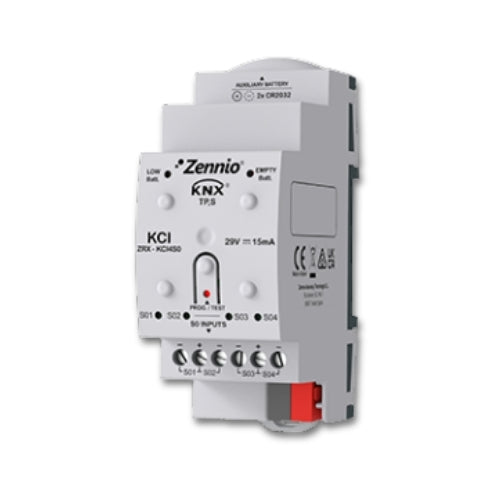

Zennio ZRX-KCI4S0 KCI 4 S0

SKU: ZRX-KCI4S0
£124.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Zennio ZRX-KCI4S0 KCI 4 S0 KCI (KNX Consumption Interface) is Zennio's KNX interface for four consumption meters with S0 pulse outputs. It monitors electricity use and power, plus water or gas volume and flow rates, on the KNX bus. A removable battery stores S0 pulses during a KNX power failure, allowing the system to recover accurate consumption data afterwards.

Technical Specs

  • 4 channels for consumption counters (meters) with S0-pulse outputs(UNE-EN 62053-31)
  • Registration of consumed electric power, cost and CO2 emissions that
    can be split in up to 4 time intervals
  • Compliant with UNE-EN 62053-31 Class B
  • Total data saving on KNX bus failure
  • Integrated KNX BCU (TP1-256)
  • Size 67mm x 90mm x 36 mm (2 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
