Zennio

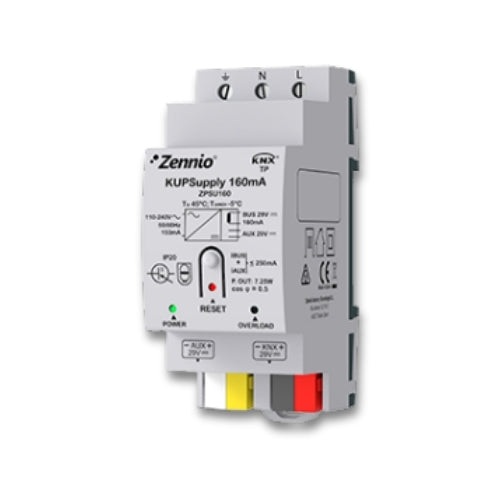

Zennio ZPSU160 KUPSupply 160mA

SKU: ZPSU160
£133.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Zennio ZPSU160 KUPSupply 160mA KNX universal system power supply includes an extra 29 V DC output and delivers up to 250 mA. Up to 160 mA can power the KNX bus, with the remaining capacity available for the additional output. Designed for small KNX installations, it accepts 110-240 V AC at 50/60 Hz and fits a two-module DIN rail space.

Technical Specs

  • 160 mA KNX power supply with 29 VDC auxiliary output
  • Nominal output current: 160 mA on KNX bus and 250 mA total NX+Aux
  • Power generation for the KNX system (with LED indicator)
  • Short-circuit and overvoltage protection
  • Reset button and overload status LED
  • KNX coil included
  • Dimensions 67mm x 90mm x 36mm (2 DIN units)
