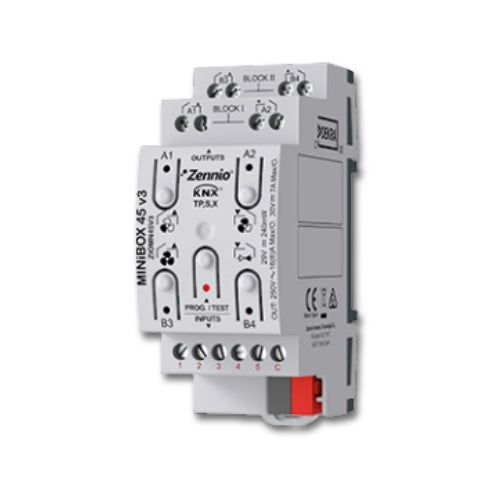

Zennio ZIOMN45V3 MiniBox 45 V3

SKU: ZIOMN45V3
£207.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Zennio ZIOMN45V3 MiniBox 45 V3 two-unit DIN-rail multifunction actuator has four 16 A C-load outputs, configurable as shutter channels, separate outputs or a two-pipe fan coil controller. Push buttons on the cover provide manual output control, while the built-in logic module supports advanced functions. Five analogue-digital inputs can connect binary sensors, volt-free push buttons, temperature probes or motion sensors.

Technical Specs

  • 2 Master Light controls
  • 5 analog/digital inputs
  • Manual output operation with push button and LED status indicator
  • 10 logic functions
  • Output timing
  • 4 thermostats
  • 4 configurable outputs: fan coil, shutter channels (up to 2) and individual outputs (up to 4)
  • Possibility of controlling blinds/shutters with 2 or 3 dry contacts
  • Dimensions: 67mm x 90mm x 36mm (2 DIN units)
