Zennio

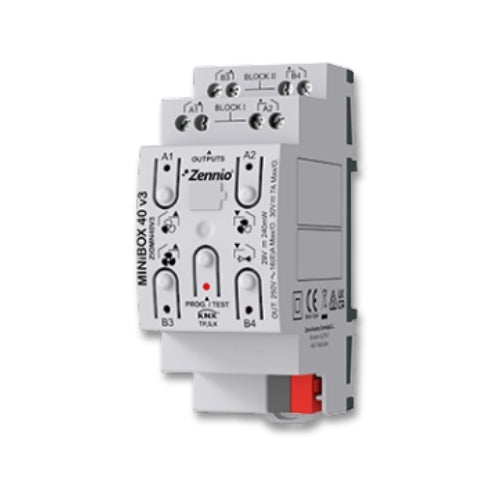

Zennio ZIOMN40V3 MiniBox 40 V3

SKU: ZIOMN40V3
£154.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

This Zennio ZIOMN40V3 MiniBox 40 V3 two-module DIN-rail multifunction actuator has four 16 A C-load outputs, configurable as shutter channels, separate outputs or a two-pipe fan coil controller. Push buttons on the cover provide manual output control, while the built-in logic module adds greater flexibility.

Technical Specs

  • 4 configurable outputs: shutter channels (up to 2), individual outputs (up to 4) and 2-pipe fan coil control (up to 1)
  • Possibility of controlling blinds/shutters with 2 or 3 dry contacts
  • KNX Data Secure supported
  • 2 Master Light controls
  • Manual output operation with push button and LED status indicator
  • 10 logic functions
  • Output timing
  • Dimensions: 67mm x 90mm x 36mm (2 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
