Zennio

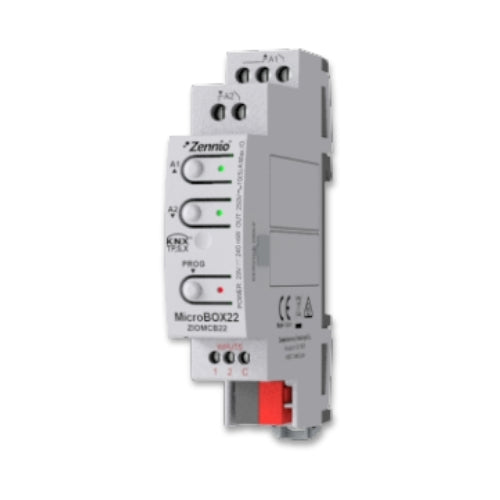

Zennio ZIOMCB22 MicroBox 22

SKU: ZIOMCB22
£119.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

This Zennio ZIOMCB22 MicroBox 22 single-unit multifunction actuator fits a DIN rail and provides two 10 A C-load outputs. Configure them as shutter channels or use them as separate outputs to suit the installation. Push buttons on the cover enable manual control, while output status can be monitored at a glance. A logic module with 10 functions adds further flexibility. Two analogue-digital inputs can connect binary sensors or potential-free push buttons, temperature probes, or motion sensors.

Technical Specs

  • The actuator is also compatible with KNX Secure.
  • 2 configurable outputs: shutter channel or individual outputs (up to 2)
  • Dimensions 67mm x 90mm x 17.5mm (1 DIN unit)
  • Total data saving on KNX bus failure
  • 10 logic functions
  • Manual output operation with push button and LED status indicator
