Zennio

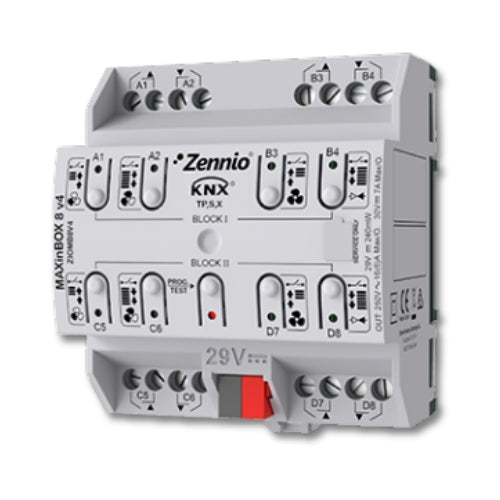

Zennio ZIOMB8V4 MAXinBox 8 v4

SKU: ZIOMB8V4
£259.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Zennio ZIOMB8V4 MAXinBox 8 v4 multifunction DIN-rail actuator occupies 4.5 units and provides eight outputs rated at 16 A C-Load. Configure them as shutter channels, separate outputs, or blocks for controlling two-pipe fan coils. Push buttons on the cover allow manual output control, while 20 independent logic functions add flexibility. The actuator is compatible with KNX Secure and supports AC/DC shutter adapters as accessories.



Technical Specs

  • 2 different configurable blocks: shutter channels (up to 4), individual
    outputs (up to 8) and 2-pipe fan coil control (up to 2)
  • Possibility of controlling blinds/shutters with 2 or 3 dry contacts
  • Supports KNX Data Secure
  • Manual output operation with push button and LED status indicator
  • 20 logic functions
  • Output timing
  • Dimensions: 67mm x 90mm x 79mm (4.5 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
