Zennio

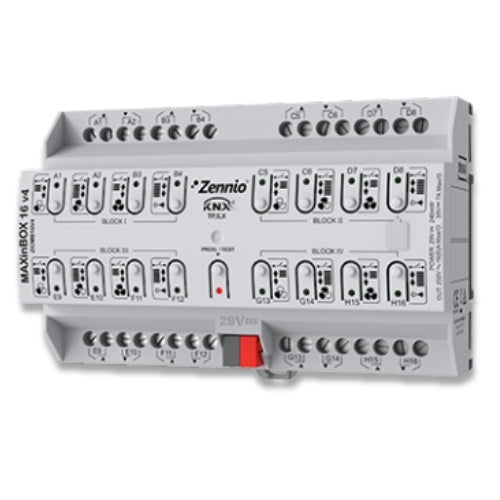

Zennio ZIOMB16V4 MAXinBox 16 V4

SKU: ZIOMB16V4
£434.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

Zennio ZIOMB16V4 MAXinBox 16 V4 8-module DIN rail multifunction actuator with 16 outputs rated at 16 A C-Load. Configure the outputs as shutter channels, individual outputs or two-pipe fan coil control blocks. Push buttons on the cover provide manual output control. It also includes 20 independent logic functions, supports KNX Secure and is compatible with AC/DC shutter adapters.

Technical Specs

  • 4 different configurable blocks: shutter channels (up to 8), individual
    outputs (up to 16) and 2-pipe fan coil control (up to 4)
  • Possibility of controlling blinds/shutters with 2 or 3 dry contacts
  • KNX Data Secure supported
  • 2 Master Light controls
  • Manual output operation with push button and LED status indicator
  • 20 logic functions
  • Output timing
  • Dimensions: 67mm x 90mm x 140mm (8 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
