Zennio ZIOIB24V3 inBox 24 V3

SKU: ZIOIB24V3
£124.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

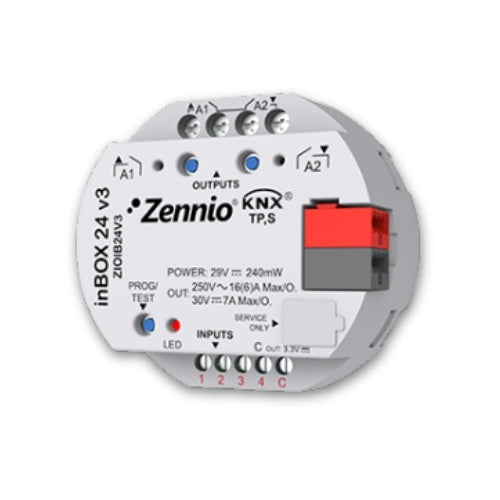

This Zennio ZIOIB24V3 inBox 24 V3  flush-mounted multifunction actuator has two 16 A C-Load outputs, configurable for shutter control or separate operation. Manual output control is supported, along with four thermostats, ten independent logic functions and a Master-Light function. Set up four analogue-digital inputs for sensors and potential-free push buttons, temperature probes or motion sensors, giving the system flexible control options.

Technical Specs

  • 2 configurable outputs: shutter channel or individual outputs
  • Possibility of controlling blinds/shutters with 2 or 3 dry contacts
  • 4 inputs configurable as binary input, temperature probe (NTC with customizable curve) or motion sensor
  • Manual output operation with push button and LED status indicator
  • 10 logic functions
  • 4 thermostats
  • 2 Master Light controls
  • Dimensions Ø 51.4 x 26.6 mm
