Zennio

Zennio ZIOMN20V2 MiniBox 20 V2

SKU: ZIOMN20V2
£119.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

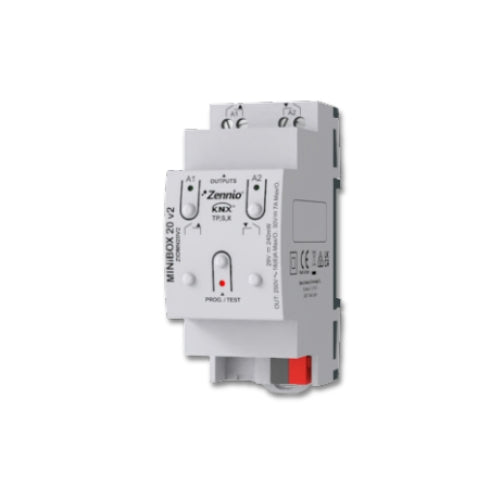

The Zennio ZIMN20V2 MiniBox 20 V2 is a compact, two-output multifunction KNX actuator for DIN rail mounting. It supports KNX Secure, switches capacitive loads up to 16 A C-load, and offers manual push-button control with LED indicators. An integrated logic module adds further control options.

Technical Specs

  • Outputs: 2 configurable outputs (usable as 1 shutter channel or up to 2 individual binary outputs)
  • Load Rating: 16 A C-load, supporting high inrush and capacitive loads up to 140 µFBus Security: Fully compatible with KNX Data Security (KNX Secure)
  • Logic Capabilities: Includes 10 independent logical functions
  • Physical Size: 2 DIN units, 67mm x 90mm x 35/36 mm, designed for DIN rail mounting
  • Manual Operation: On-board test push buttons with status LED indicators for each output
