Zennio ZDINDX4 NarrowDIM X4

SKU: ZDINDX4
£280.00
In stock
Disclaimer: we aim to ship all items within 24 hours, but please be advised that on-demand stock availability can vary. If we cannot meet your delivery target, we will notify you immediately so you can make an informed decision about your order.
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

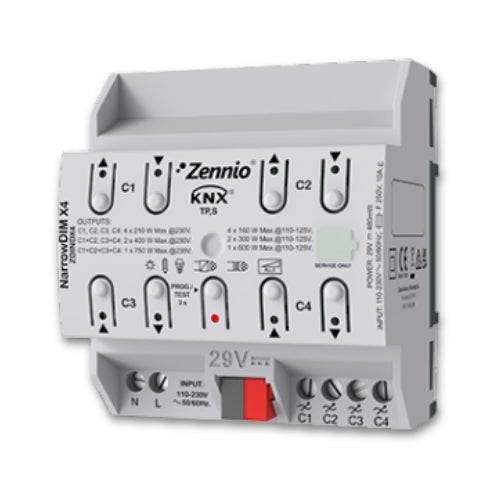

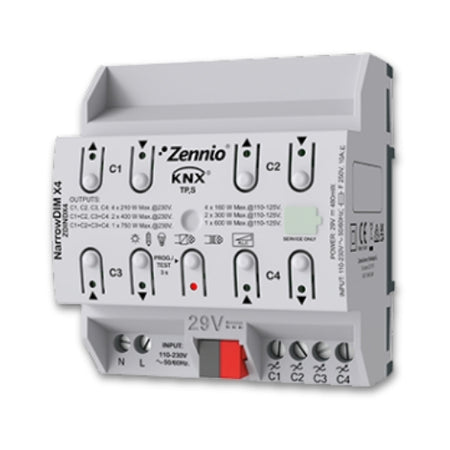

The Zennio ZDINDX4 NarrowDIM X4 universal dimming actuator for RLC, LED and CFL* loads, designed for 4.5 DIN-rail units. Its four channels support up to 210 W at 230 VAC or 160 W at 110 VAC. Channels can be paired for loads up to 400 W at 230 VAC and 300 W at 110 VAC, or combined across four channels for up to 750 W at 230 VAC and 600 W at 110 VAC. The actuator detects RLC loads automatically and offers adjustable dimming curves for LED and CFL lamps.

Technical Specs

  • 4 channels for R L C loads and for dimmable CFL and LED lamps
  • Automatic detection of R L C load type
  • Automatic frequency detection
  • dimming pattern selection for CFL and LED lamps
  • Optional manual dimming control
  • Dimensions 67mm x 90mm x 79 mm (4.5 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
