Zennio

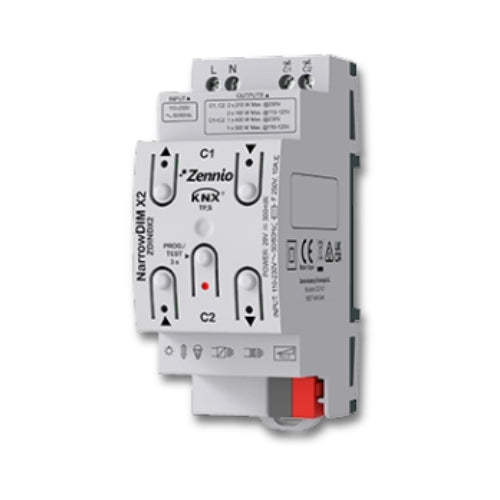

Zennio ZDINDX2 NarrowDIM X2

SKU: ZDINDX2
£176.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

Zennio ZDINDX2 NarrowDIM X2 universal dimming actuator for RLC, LED and CFL* loads, designed for DIN-rail mounting across two units. Its two channels handle up to 210 W at 230 V AC or 160 W at 110 V AC. For higher loads, both channels can be linked to control up to 400 W at 230 V AC or 300 W at 110 V AC. The device detects RLC load types automatically and offers adjustable dimming curves for LED and CFL lamps. Built-in fault detection identifies short circuits, voltage surges, overheating, unusual frequency, power loss and parameter errors.

Technical Specs

  • 2 channels for R L C loads and for dimmable CFL and LED lamps
  • Automatic detection of R L C load type
  • Automatic frequency detection
  • Dimming pattern selection for CFL and LED lamps
  • Optional manual dimming control
  • Dimensions: 67mm x 90mm x 36mm (2 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
