Zennio

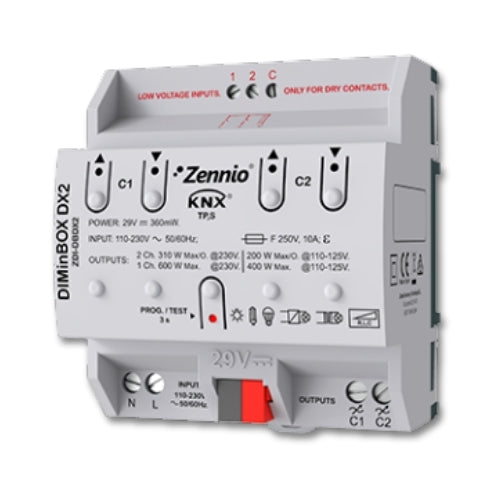

Zennio ZDI-DBDX2 DIMinBox DX2

SKU: ZDI-DBDX2
£193.00
In stock
Disclaimer: we aim to ship all items within 24 hours, but please be advised that on-demand stock availability can vary. If we cannot meet your delivery target, we will notify you immediately so you can make an informed decision about your order.
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Zennio ZDI-DBDX2 DIMinBox DX2 universal dimming actuator for DIN-rail installation (4.5 units), supporting RLC, LED and CFL* loads. It provides two channels up to 310 W or one channel up to 600 W at 230 VAC. At 110-125 VAC, it supports two channels up to 200 W or one up to 400 W. RLC loads are detected automatically, while LED and CFL dimming curves can be configured. Cover-mounted push buttons provide manual output control.

Technical Specs

  • 2 channels for R L C loads and for Dimmable CFL and LED lamps
  • Automatic detection of R L C load type
  • Automatic frequency detection
  • Dimming pattern selection for CFL and LED lamps
  • Optional manual Dimming control
  • 2 Analog/Digital inputs
  • Dimensions 67mm x 90mm x 79mm (4.5 DIN units)
