Zennio

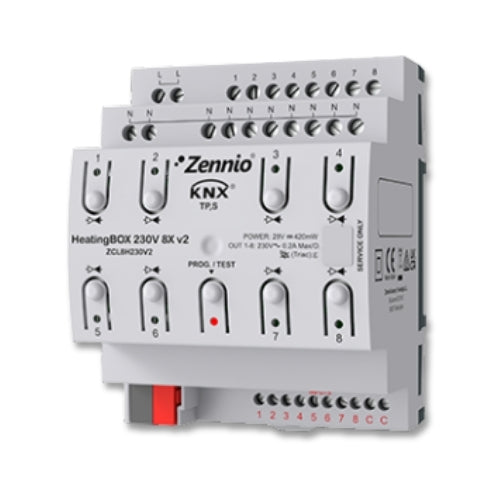

Zennio ZCL8H230V2 HeatingBox 230V 8X V2

SKU: ZCL8H230V2
£226.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

Zennio ZCL8H230V2 HeatingBox 230V 8X V2 actuator for water-based climate systems, controlling up to eight 230 VAC on/off valves through short-circuit-protected triacs. Each output has its own thermostat, alongside eight analogue-digital inputs and a module with 10 logic functions. A single power input supplies all outputs, while the shared neutral makes valve installation easier. Outputs can also be controlled manually, with LEDs showing their status.

Technical Specs

  • 8 configurable outputs for 230 VAC valve control
  • 8 thermostats
  • 8 analog/digital inputs
  • 10 logic functions
  • Manual control through buttons and LED status indicators
  • Common 230 VAC input supply for all the outputs
  • Dimensions: 67mm x 90mm x 70mm (4 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
