Zennio

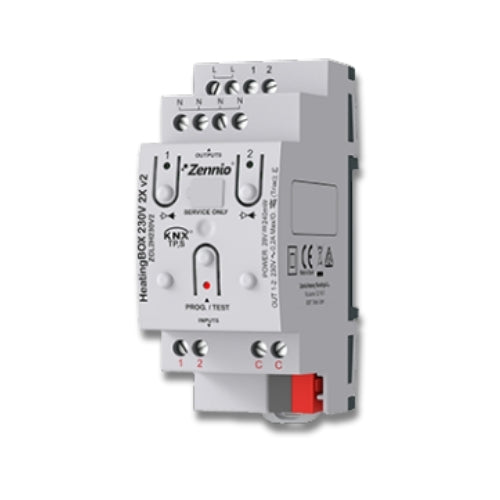

Zennio ZCL2H230V2 HeatingBox 230V 2X V2

SKU: ZCL2H230V2
£138.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

This Zennio ZCL2H230V2 HeatingBox 230V 2X V2 for water-based climate systems, controlling up to two 230 VAC on/off valves through short-circuit-protected triacs. Each output has its own thermostat, plus two analogue-digital inputs and a module with ten logical functions. A single power input supplies all outputs, while the shared neutral simplifies valve installation. Manual output control is available, with LED status indicators.

Technical Specs

  • 2 configurable outputs for 230 VAC valve control
  • 2 thermostats
  • 2 analog/digital inputs
  • 10 logic functions
  • Manual control through buttons and LED status indicators
  • Common 230 VAC input supply for all the outputs
  • Dimensions: 67mm x 90mm x 36mm (2 DIN units)
  • DIN rail mounting according to IEC 60715 TH35, with fixing clamp
