Zennio ZCL-FC010V MAXinBOX FC 0-10V Valve

SKU: ZCL-FC010V
£50.00
Only 2 left
Low inventory - Hurry up!
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

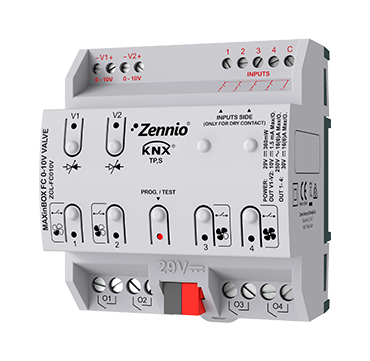

The Zennio ZCL-FC010V MAXinBOX FC 0-10V Valve offers precise KNX control for one 2-pipe or 4-pipe fan coil unit. Using 0-10V signals it manage HVAC valves accurately.

Technical Specs

  • Onboard Logic: Features two independent thermostats alongside a module providing 10 customizable logic functions.
  • Form Factor: Standard 4.5-module DIN-rail enclosure, measuring 67 x 90 x 80 mm, with a built-in KNX bus coupling unit (BCU).
  • Manual Override: Front-facing physical push buttons allow direct manual operation with visual status confirmation via LEDs
  • Fan Control & Relays: Four 16A C-load relay outputs control up to four fan speeds, or can work as separate outputs for other switching tasks.
  • Multifunction Inputs: Features four analog/digital inputs configurable for temperature probes, binary sensors, potential-free buttons, or motion sensors.
