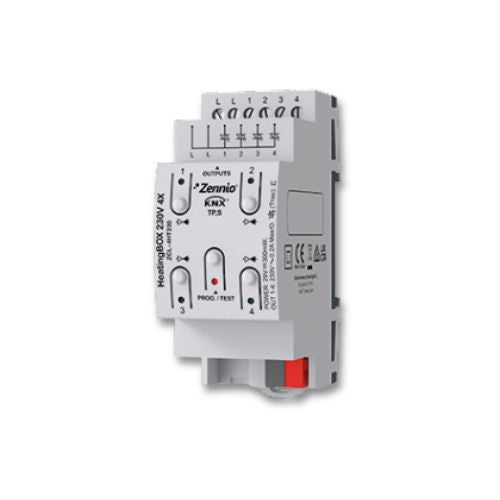

Zennio ZCL-4HT230 HeatingBox 230V 4X

SKU: ZCL-4HT230
£60.00
Only 1 left
Low inventory - Hurry up!
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

This Zennio ZCL-4HT230 HeatingBox 230V 4X for water-pipe climate systems controls up to four 230 VAC on/off valve outputs through short-circuit-protected triacs. Each output has its own independent thermostat, while a separate module provides 10 logic functions. Manual output control is also available, with LED indicators showing each output's status.

Technical Specs

  • Zone Capacity: It features 4 independent Triac outputs tailored for silent, wear-free on/off valve operation with automatic short-circuit protection.
  • Input Interfaces: The updated v2 model adds four analogue-digital inputs, configurable for temperature probes, motion sensors, or dry-contact binary inputs.
  • Control Power: Utilizes a single, common 230V AC power input to supply current to all attached valve heads simultaneously.
  • Form Factor: Extremely compact housing measuring 67 x 90 x 36 mm, taking up exactly 2 DIN rail units in an electrical distribution board.
