WEINZIERL 5543 KNX TP Multi IO 570.1 Secure

SKU: 5543 KNX TP Multi IO 570.1 secure
£395.42
In stock
Disclaimer: we aim to ship all items within 24 hours, but please be advised that on-demand stock availability can vary. If we cannot meet your delivery target, we will notify you immediately so you can make an informed decision about your order.
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

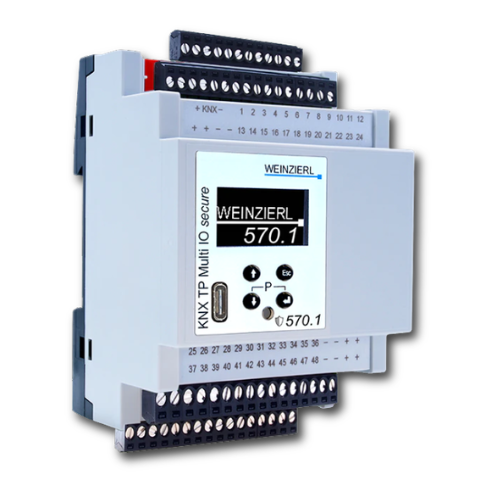

WEINZIERL 5543 KNX TP Multi IO 570.1 Secure. This universal module handles building control inputs and outputs. It packs 48 digital channels. Set each channel as binary input, binary output, or shutter output. Input channels can link straight to push buttons. Outputs drive signal LEDs, coupling relays, or shutter relays.

Technical Specs

  • Connections: KNX, USB type C, plugable screw terminals for 24 V⎓ (input)
  • Power Supply: KNX Bus approx. 6 mA
  • Controls and indicators: LED display with four buttons
  • Integrated USB interface for programming with ETS®
  • DIN rail mounted device, width: 4 modules (72 mm)
