Theben

Theben 9070956 PS 160 mA T KNX

SKU: 9070956
£145.94
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

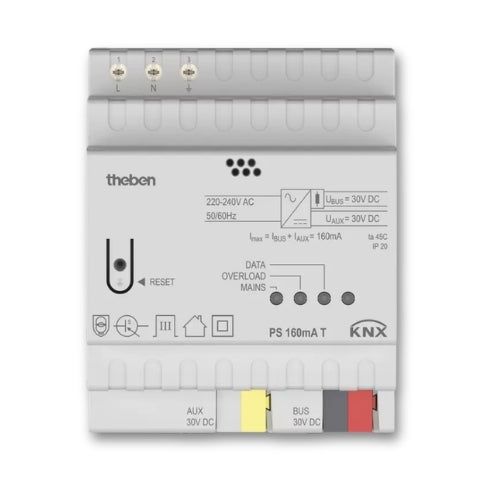

The Theben 9070956 PS 160 mA T KNX power supply and monitoring for KNX systems. Provides the system voltage for the KNX bus and monitors it simultaneously. With integrated choke, the bus line is decoupled from the KNX power supply. Features a reset key for 20 sec. bus reset and continuous short-circuit protection. Suitable for DIN rail mounting.

Technical Specs

  • Auxiliary supply: 30 V DC
  • Width: 4 modules
  • Installation type: DIN rail
  • Type of connection: KNX bus terminal
  • Reset function: 20 sec. bus reset
  • Short-circuit protection: Continuous
  • Mains failure bridging time: min. 130 ms
  • Type of protection: IP 20
  • Protection class: II
