Theben 4969228 TA8 S KNX

SKU: 4969228
£50.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

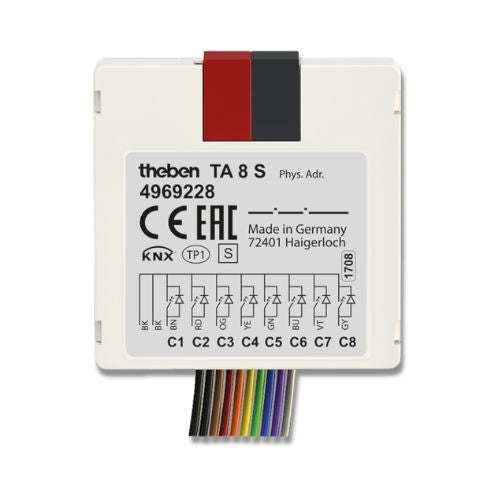

Theben 4969228 TA 8 S KNX is an eight-way binary input/output push-button interface for linking standard switches, buttons, or temperature sensors to a KNX smart home bus. Its compact design fits behind standard wall switches for flush-mounted installation.

Technical Specs

  • Installation Format: Standard flush-mounted socket
  • Connection Scheme: KNX bus terminal with a 10-pole color-coded cable tail
  • Universal Input Configurations: Each channel can be programmed freely. Use it to control switching and push-button actions, dim lights, operate motorised blinds, transmit values, or activate preset scenes.
  • Flexible Output Conversion: The inputs re-parameterised into physical binary outputsavailable. This allows you to drive status indicator LEDs with programmable pulsing or flashing patterns.
  • Enhanced LED Control: Built with an increased output current of 3 mA to easily power standard commercial LEDs or low-current warning lights across 3 different brightness profiles.
  • Integrated Temperature Sensing: Includes two dedicated NTC inputs that monitor actual ambient temperatures between -5 °C and +100 °C.
