Theben 4969226 TA6 S KNX

SKU: 4969226
£40.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

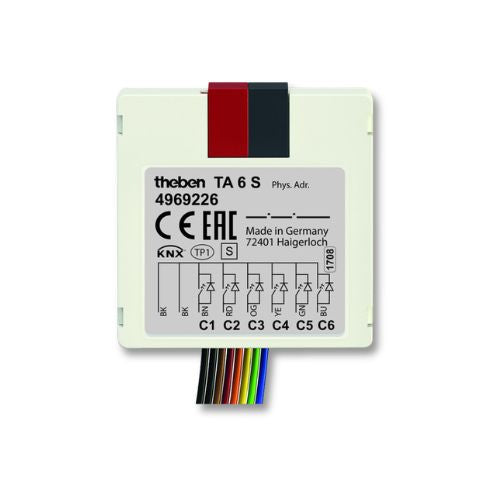

The Theben 4969226 TA 6 S KNX is a six-way, flush-mounted binary input and push-button interface. It connects standard switches, buttons, and sensors to KNX building automation systems.

Technical Specs

  • Versatile Parameterization: Using ETS software, each channel can be programmed for switching, dimming, window blind or shutter control, scene selection, counting, and sequential value transmission.
  • Reconfigurable Outputs & LED Control: The inputs re-parameterised into outputs available. With its upgraded 3 mA output, it powers and controls standard or low-current feedback LEDs directly, with tailored flash and pulse patterns.
  • Temperature Sensing: Channels 3 and 4 feature dedicated NTC inputs. Connect external Theben temperature probes to track room or underfloor temperatures in real time, from -5°C to +100°C.
  • Channels: 6 configurable inputs via an 8-pole, colour-coded cable connection.
  • Installation: Designed for flush-mounted boxes right behind traditional light switches or push-buttons.
