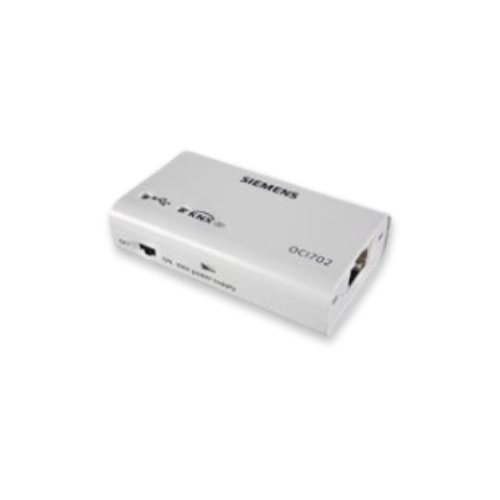

Siemens OCI702 USB KNX Service Interface

SKU: OCI702
£356.00
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Siemens OCI702 USB KNX Service Interface is a handy USB-to-KNX tool. It links a Windows PC to your KNX network. Technicians trust it to set up and fix building controls. It makes managing HVAC gear and automation simple.

Technical Specs

  • Built-in Power Supply: The device includes a small integrated power supply providing 25 mA at DC 29 V to the KNX bus. This eliminates the need for an external power source during point-to-point service tasks.
  • Manual Bus Power Control: Features a slider switch on the side of the interface to manually turn the integrated KNX bus power supply on or off (factory default is off).
  • USB-Powered Host: The host PC USB port powers the interface electronics. It works with standard USB 2.0 and is safe to use with USB hubs.
  • Status Indication: Equipped with onboard LED lights to visually indicate operational status and active bus communication.Long Frame Support: Supports extended data packets up to 64 bytes for faster and more efficient data transmission.
  • Degree of protection: IP20
  • Dimensions: 74mm × 44mm × 19.5mm
