Bemco KNX

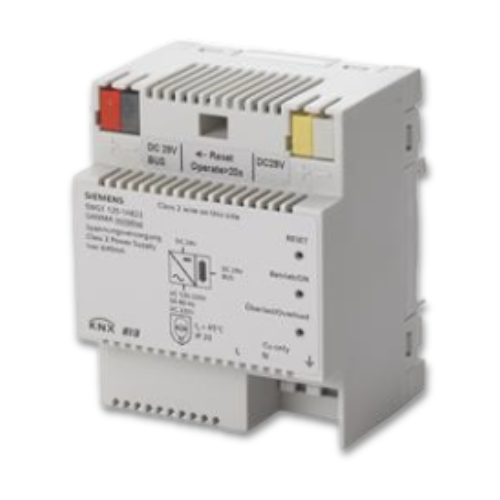

Siemens N 125/22 KNX Power Supply Unit DC 29 V 640 mA with Additional Unchoked Output

SKU: N 125/22
£323.00
In stock
Disclaimer: we aim to ship all items within 24 hours, but please be advised that on-demand stock availability can vary. If we cannot meet your delivery target, we will notify you immediately so you can make an informed decision about your order.
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Siemens N 125/22 KNX Power Supply Unit DC 29 V 640 mA is a powerful DIN-rail power supply for KNX building networks. It gives a steady DC 29 V output at 640 mA. This is enough to run a standard bus line with up to 64 devices.

Technical Specs

  • Choked Output: The primary bus connection features an integrated choke. The choke decouples the DC power from the line, preventing the high-frequency data telegrams on the network from short-circuiting
  • Additional Unchoked Output: This secondary output provides standard DC 29 V without a choke. It is widely used to power auxiliary components or to supply a separate, second KNX bus line via an external choke
  • Buffer Interval: Bridges short mains power disruptions of up to 200ms at rated current to preserve network communication.
  • Integrated Reset Button: Built-in slide/reset switch. Holding it down for more than 20 seconds completely disconnects the bus voltage to return connected bus devices to their initial state for troubleshooting or testing.
  • Diagnostic LEDs: Clear visual indicators on the front panel display standard operating status, overloading, or voltage interruptions
