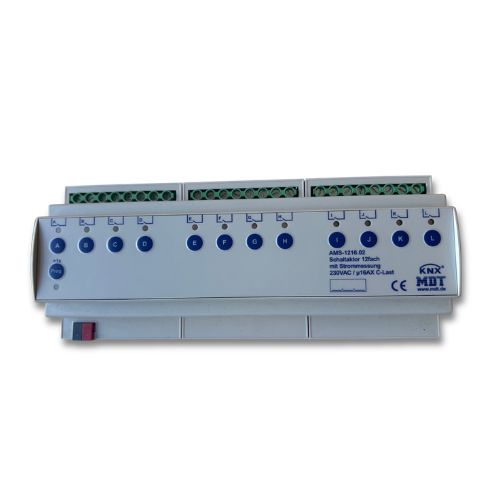

MDT AMS-1216.02 Switch Actuator 12-Fold 230 VAC 16A C-Load

SKU: AMI-1216.02
£150.00
Only 1 left
Low inventory - Hurry up!
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The MDT AMS-1216.02 is a powerful 12-fold KNX switch actuator. It uses 16A relay outputs and handles 140 uF capacitive C-loads. Built-in True RMS tools give you exact current and energy readings. Mount it on a DIN-rail in your board for a smart way to track loads.

Technical Specs

  • Manual Operation: Local push-button control with LED status indicators for each channel.
  • Logic & Timing: Includes switch-on/off delays, staircase lighting functions, logic gates, and 8 scenes per channel.Bus Integration: Fast application downloads via long-frame support
  • Outputs: 12 independent switching channels with separated L-connections.
  • Current Measurement: Integrated True RMS range from 10 mA to 20 A with energy metering (Wh/kWh).
