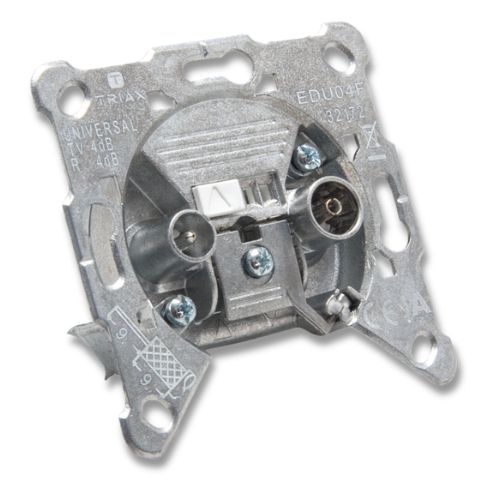

Jung EDU04F TV FM Socket Outlet Insert

SKU: EDU04F
£12.69
In stock
Disclaimer: we aim to ship all items within 24 hours, but please be advised that on-demand stock availability can vary. If we cannot meet your delivery target, we will notify you immediately so you can make an informed decision about your order.
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Jung EDU04F is a 2-port TV/FM antenna socket outlet mechanism designed for terminal or spur-line applications. It functions as a separate socket or the endpoint of a weakened, decoupled line branching from the main system.

Technical Specs

  • Frequency Range: Covers the broad 5 MHz to 2400 MHz range, ensuring full compatibility with analogue and digital radio (FM), cable TV (CATV), and satellite (SAT) signals.
  • Outputs: 2-gang configuration providing dedicated connection ports for TV and Radio (FM).
  • Tap Loss: Delivers strong signal quality with low attenuation of around 4 dB at both 860 MHz and 2150 MHz.
  • Remote Power: Built with support for remote power supply capabilities.
