Jung

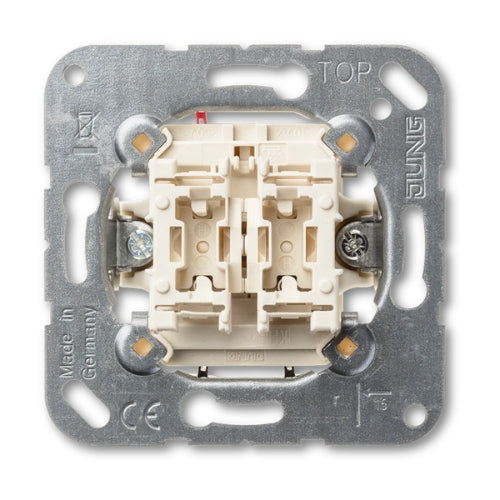

Jung 535U 2-Gang Push-Button 2 x 1-Pole 1-Way NO Contact 10 A 250 V

SKU: 535U
£20.11
In stock
Disclaimer: we aim to ship all items within 24 hours, but please be advised that on-demand stock availability can vary. If we cannot meet your delivery target, we will notify you immediately so you can make an informed decision about your order.
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Jung 535U 2-Gang Push-Button is a flush-mounted, mechanical 2-gang double push-button insert rated for 10 A and 250 V ~. It features two independent 1-pole, 1-way normally open (NO) contacts designed to send momentary electrical pulses when pressed.

Technical Specs

  • Contact Type: 2 x Normally Open (NO / Make contacts).
  • Wiring Terminals: Screwless spring/plug-in terminals for rigid conductors up to 2.5 mm².
  • Standards: Built to DIN VDE 0632 and EN 60669 connection standards.
  • Dimensions: 71mm Width x 71mm Height x 36mm Depth.
  • Protection Rating: IP20 safety
  • Impulse Relays: Controlling lighting circuits from multiple locations (e.g., long hallways or stairwells) via a central step relay.
  • Smart Home Systems: Providing dual-input control pulses for KNX binary inputs, Loxone, or other home automation controllers.
  • Chimes & Signalling: Operating dual-circuit buzzer or bell systems.
