Jung

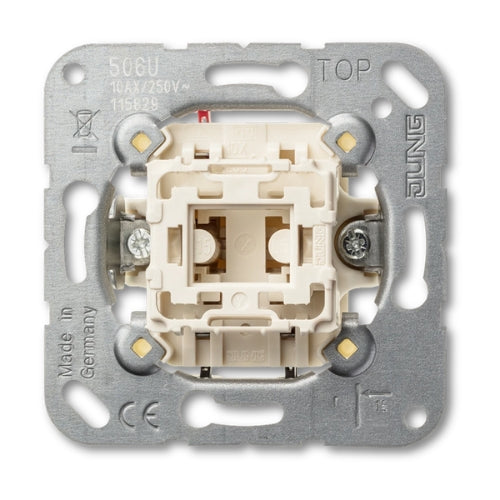

Jung 506U 1-Gang Switch Insert 10 AX 250 V~ 1-pole 2-way

SKU: 506U
£10.51
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Jung 506U 1-Gang Switch Insert offers a reliable, high-quality choice for flush-mounted installations. Its 1-pole, 2-way universal toggle design supports flexible use, with a robust rating of 10 AX at 250 V~. This versatile electrical component works as a standard one-way switch or controls one light from two locations as a two-way switch.

Technical Specs

  • Load Compatibility: Max 100 W for self-ballasted lamps (SBL / LEDs)
  • Terminals: Screwless, push-in spring terminals for rigid wires up to 2.5 mm²
  • Mounting Method: Flush-mounted with snap-in claw and screw fastening
  • Dimensions/Depth: 71mm Width x 71mm Height, with a 32mm Installation depth.
  • Optional Illumination: The switch can be set to glow when it is off, making it easier to find and use in the dark.
