Jung

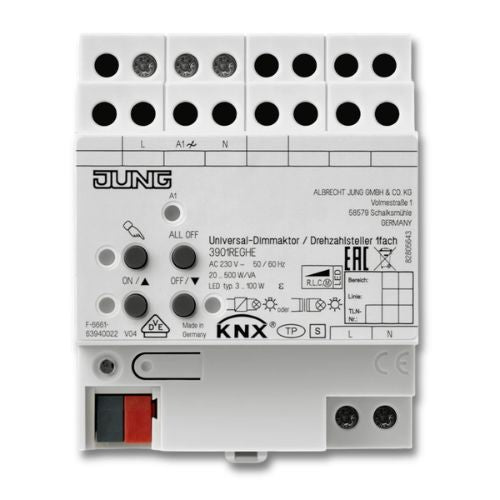

Jung 3901REGHE KNX LED Universal Dimming Actuator/ Speed Regulator 1-Gang Rail Mounting Device 4 Rail Units

SKU: 3901REGHE
£283.95
In stock
Usually ships within 24 hours
Ready to work out of the box

Start your projects with confidence. Our team is here to help.

Ask our experts

Email 020 8874 0404

The Jung 3901REGHE KNX LED Universal Dimming Actuator is a versatile 1-gang KNX universal dimming actuator and speed regulator for DIN rail installation in electrical sub-distribution boards.  Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps. Has dimmable electronic transformers with LV halogen or LV LED lamps.

Technical Specs

  • Size: 4 rail units/ 72mm width
  • Parameterisable switch-on and dimming behaviour
  • Time functions: switch-on delay, switch-off delay, staircase lighting timer with switch-off warning
  • Light scene operation
  • Disabling of individual outputs manually or via bus
  • Status indication of the outputs via LED
  • Operating hours counter
  • Power failure longer than approx. 5 seconds causes the dimming outputs to switch off. Depending on the parameter setting, the connected load is calibrated after voltage return.
  • Automatic or manual setting of the dimming principle suitable for the load
