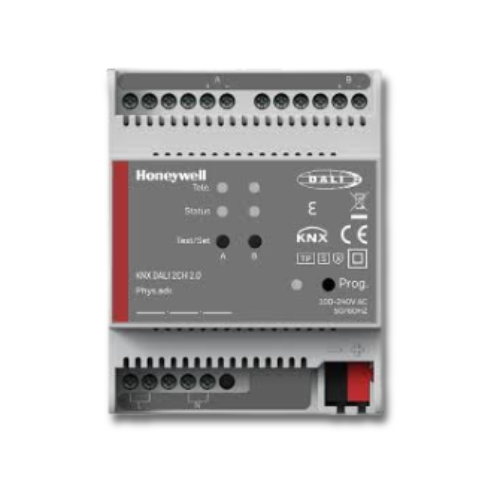

Honeywell KNX DALI 2CH 2.0 - KNX Dali Gateway Support  DALI 2.0 Standard - 2 Channel

Honeywell KNX DALI 2CH 2.0 - KNX Dali Gateway. The DALI Lighting Control System uses one or two channels. Each channel handles up to 64 devices. You can set the brightness, colour, and dimming for each light one by one. It works with DT6 for LED dimming and DT8 for RGB or temperature control. It also supports DT1 battery lamps.

Technical Specs

• Output Channel & Device Types: The system offers one or two output channels, each capable of managing up to 64 DALI devices. Each device allows for individual operations, including switching, dimming, setting brightness levels, and controlling color. It supports multiple device types such as DT6 for LED dimming, DT8 for color control, RGB, RGBW, XY Color, and DT1 self-contained battery lamps.
• Group Control: Users can create up to 16 different groups for each channel, assigning DALI devices to these groups via the Device Configuration Application (DCA). This allows for centralized control over switching, dimming, and color settings for each group.
• Monitoring & Security: The system includes monitoring capabilities for DALI bus voltage, current, and the status of any short circuits on the DALI bus. Additionally, it supports the KNX Data Secure feature, enhancing security and reliability.
• DALI Sensor: Each channel supports 8 DALI sensors. These track motion and light to give you total control. You can trigger global or group scenes through KNX scenes. With 16 DALI scenes per channel and DCA brightness management, your setup stays precise.
• Broadcast Control & Operation Mode: Control all DALI devices on a channel with ease. You can switch lights, set brightness, and change colour or temperature. The system supports many modes, including night, staircase, permanent, and burn-in.
• Can track live updates for light levels and power states.
