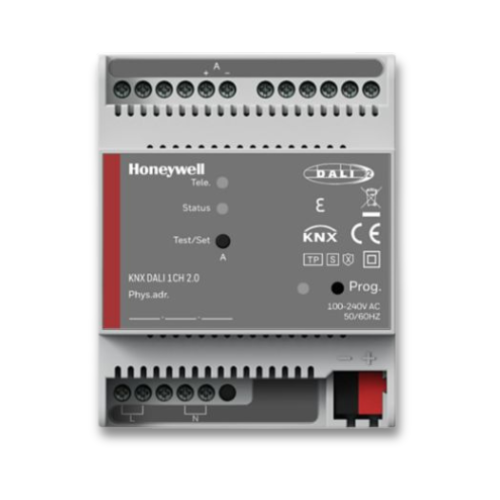

Honeywell KNX DALI 1CH 2.0 - KNX Dali Gateway Support  DALI 2.0 Standard - 1 Channel

This Honeywell KNX DALI 1CH 2.0 - KNX Dali Gateway lighting control System uses one or two channels. Each channel handles up to 64 devices. You can set the brightness, colour, and dimming for each light one by one. It works with DT6 for LED dimming and DT8 for RGB or temperature control. It also supports DT1 battery lamps.

Technical Specs

• Output Channel & Device Types: Each channel handles up to 64 DALI devices. You get full control over every unit. Switch them on, dim the lights, or pick a specific colour. It works with DT6 for LED dimming and DT8 for colour. You can also run RGB, RGBW, XY Color, and DT1 battery lamps.
• Group Control: Set up to 16 groups per channel using the Device Configuration Application. Assign your DALI devices to these groups to gain total control. You can easily manage switching, dimming, and colour settings from one spot.
• Monitoring & Security: The system includes monitoring capabilities for DALI bus voltage, current, and the status of any short circuits on the DALI bus. Additionally, it supports the KNX Data Secure feature, enhancing security and reliability.
• DALI Sensor: Each channel also uses up to 8 DALI sensors to track motion and light. Users can trigger group or global DALI scenes through KNX. Every channel supports 16 different scenes. The DCA handles all brightness settings.
• Broadcast Control & Operation Mode: You can toggle lights, adjust brightness, and pick the right colour or temperature. The system handles many modes, such as night, staircase, and burn-in. Use the DCA to create action templates for groups and ECGs. You get live tracking for power states and light levels too. Plus, it keeps things running by finding lamp and ballast faults on its own.
