Description

Analog In-/Output 2-fold

The MDT Analog In-/Output is suitable to control devices with 0-10V inputs and to catch 0-20mA/0-10V measurement data. All channels are galvanically isolated from the KNX bus and can be configured independently from each other as input or output. The input voltage range is from 0-10V or from 2-10V, optionally the inputs can be operated as current loop with 0-20mA or 4-20mA. Each input can be parameterised individually with the ETS.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
Each channel can be configured independently (In-/output)
In/outputs are galvanically isolated from the bus
In/outputs are galvanically connected together
Voltage for output operation is generated inside the actuator
No external power supply required
Input operation 0-10V/2-10V or 0-20mA/4-20mA (switchable)

- Conversation of measuring unit and DPT can be parameterised

- Min/max function, wire breakage detection

- Threshold and traffic light function

Output functions 0-10V:

- Control by 1Byte, 2Byte float or 1Bit objects

- Day/night function to limit control value

- Emergency mode if given value fails

Flush mounted in a installation box socket
Dimensions (W x H x D): 41mm x 41mm x 12mm
Quick application download (long frame support with ETS 5 or higher)
3 years warranty

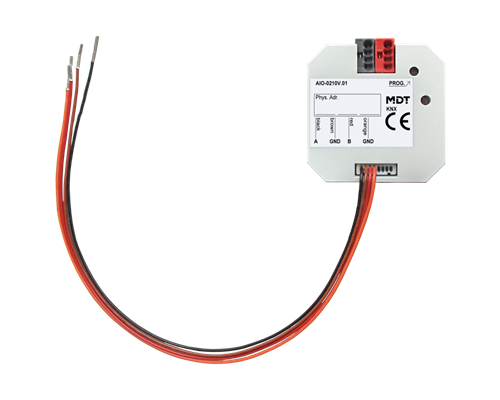

Analog I/O 2-fold, flush mounted, 0-10V, In-/Output shiftable
