KNX IO 532

Description

KNX IO 532

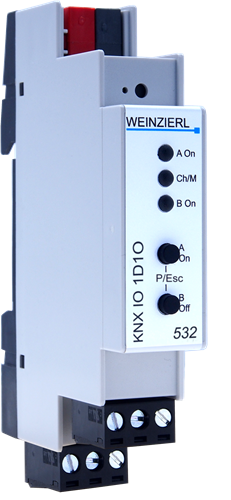

The KNX IO 532 (1D1O) is a compact combined dimming/switching actuator with 1 PWM dimming output for LEDs and 1 bi-stable relay output. The dimming actuator can be used e.g. for LED panels or stripes. Besides controlling the dimmer by switching, rel. dimming and dimming value, several optional functions are integrated, including scenes, automatic, slumber function or staircase light.

The switching actuator provides the function for universal outputs including scene control, timer, staircase lighting and heating valves (PWM for thermoelectric valve drives). Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.

TECHNICAL DATA

Mechanical data

Housing: plastic
DIN rail mounted device, width: 1 modules (18 mm
Weigth: approx 60 g

User Interface

2 buttons and 3 LEDs, multicolor
KNX programming button with LED (red)

KNX

Device Model System B
Compatible with ETS 4.2 (or higher)

Connectors

Connector for KNX Bus (red / black)
Pluggable screw connector (3 poles) for dimming
Pluggable screw connector (3 poles) for switching

Output channel (dimming)

PWM (frequency 600 Hz)
Supply voltage: 12..24 VâŽ“
Max. load current: 6 A

Input channel (switching)

Relay type: 230 V~/8 A, bi-stable
Depending on load type (capacitive or inductive) the switching power can be reduced significantly.
