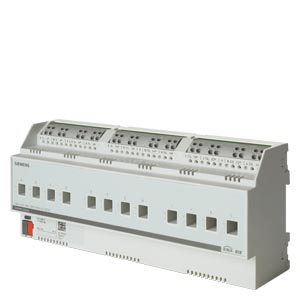

Switching Actuator N530D61 12 x AC 230 V 6 AX (10A AC1)
Part Number: 5WG1530-1DB61
Price: £357.00
Description
Switching Actuator N530D61 12 x AC 230 V 6 AX (10A AC1)
Switching of capacitive, inductive and resistive loads
Maintenance free terminals for connection and through-wiring of untreated single-core,
stranded or multi-core conductors, 0.5 ... 2.5mm² conductor area
Mechanical slide switches per output for checking the installation
Functions when configured with ETS
Comprehensive control, override and diagnostic functions per channel
Control functions: Switching with status annunciation, logic gates, central switching, scene
control, timer functions, night mode
Override functions: Manual ON, Permanent OFF, Lock, Input monitoring
Diagnostic functions: Counting of switching cycles and operating hours, status annunciation
Control value input for analog values configurable as an alternative to the switching input
