Description

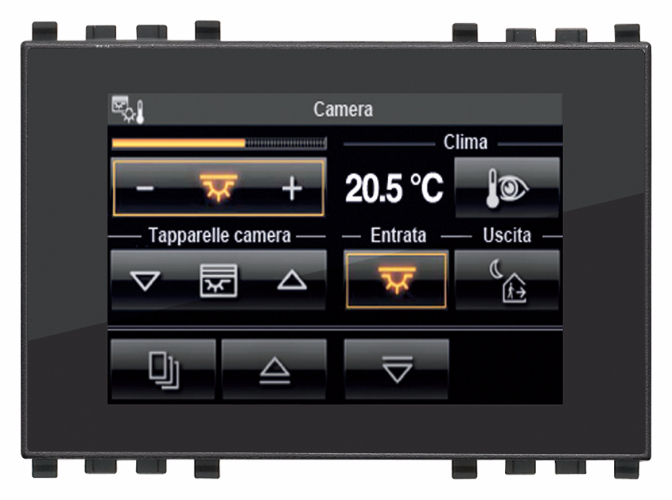

Touch screen Full Flat KNX 3M grey
Touch screen colour Full Flat for control and command, Wellcontact
Plus, 1 input for temperature sensor - 3 modules.
Device with a touch screen to be used in the automation system for controlling
lights, roller shutters, air-conditioning and scenarios. The configuration is done
with the KNX Touch screen Configurer software connecting the interface 01998 to
the special connector on the back of the device. The device also, allows the connection
of an external temperature sensor (Art. 20432-19432-14432-02965.1).
The touch screen can be installed either horizontally or vertically.
It is recommended to install the device at a height of 150 cm from the floor.
CHARACTERISTICS
- Nominal supply voltage: 30 V d.c. SELV
- Absorption: 42 mA
- Terminals:
- TP bus
- Input for temperature sensor
- Possible functions:
- ON/OFF switch (switching lights on/off)
- roller shutter control
- dimmer control (adjusting lights)
- aircon control
- scenario activation
- up to 5 pages (screens) that can be configured for controlling a room
CONFIGURATION
The touch screen configuration operation is performed using the KNX Touch
screen Configurer software and the programming interface 01998; using the ETS
project database with which the system has been configured, select the functions
(groups, scenarios, etc.) that you want to control via the touchscreen.
For all the details see the manual of the KNX Touchscreen Configurer software.
