Description

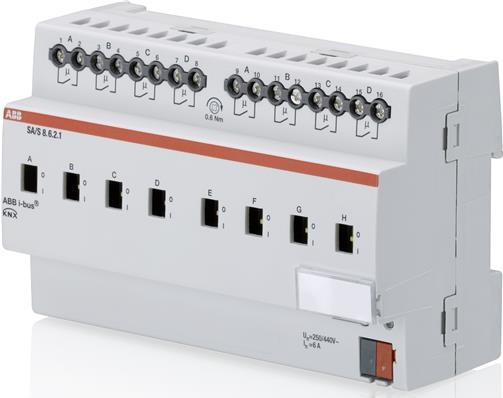

Switch Actuator, 8f, 6A, Man.
Switch Actuators SA/S x.6.2.1, 6 A are
modular installation devices in ProM
design for installation in the distribution
board. They are suitable for switching
resistive, inductive and capacitive
loads as well as fluorescent lamp loads
(AX) to EN 60 669.
The Switch Actuator can be actuated
manually using a button. This simultaneously
indicates the contact position.
The actuators can switch up to 12 independent
electrical loads via floating
contacts. The connection of the
outputs is implemented using combohead
screw terminals. Each output is
controlled separately via KNX.
The device does not require an additional
power supply and is ready for
immediate use after the bus voltage
has been applied.
The Switch Actuators are parameterized
via ETS. Connection to KNX is
implemented using the bus connection
terminal on the front.
