Description

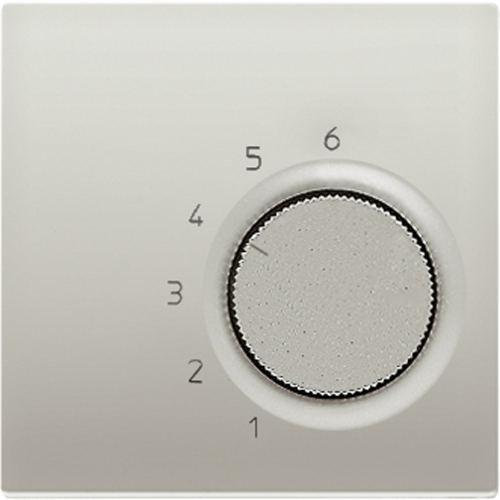

JUNG Room thermostat (2-way contact) 230 V
Screwless terminals for wires up to 2.5 mm
2.
Screw fixing only, without claws.
1-pole, 2-way, heating 10 (4) A, AC 230 V ~, 50/60 Hz.
1-pole, 2-way, cooling 5 (2) A, AC 230 V ~, 50/60 Hz.
For switching between heating/cooling the EBERLE terminal strip EV xx H/K is necessary.
(The value in brackets indicates inductive loads with cos Ï• = 0.6)
Neutral conductor required.
Hysteresis: 0.5 K
Nominal range: +5 °C ... +30 °C
When set temperature is reached the make/break contact switches over.
Are you looking for a different colour?
JUNG offer more colours than we are showing on the website:
- IVORY - Room thermostat Ivory ref.no.: TR LS 236
- LIGHT GREY - Room thermostat Light Grey ref.no.: TR LS 236 LG
- BLACK - Room thermostat Black ref.no.: TR LS 236 SW
- ANTHRACITE - Room thermostat Anthracite (aluminium lacquered) ref.no.: TR AL 236 AN
- CHROME - Room thermostat Chrome ref.no.: TR GCR 236
- GOLD COLOURED - Room thermostat Gold coloured ref.no.: TR GO 236
- GOLD-PLATED - Room thermostat Gold plated ref.no.: TR LS 236 GGO
- CLASSIC BRASS - Room thermostat Classic brass ref.no.: TR ME 236 C
