Centre plate with anti lock-out function
Part Number: LS5232SWW
Trade Price: £0.00
Price: £83.13
Description

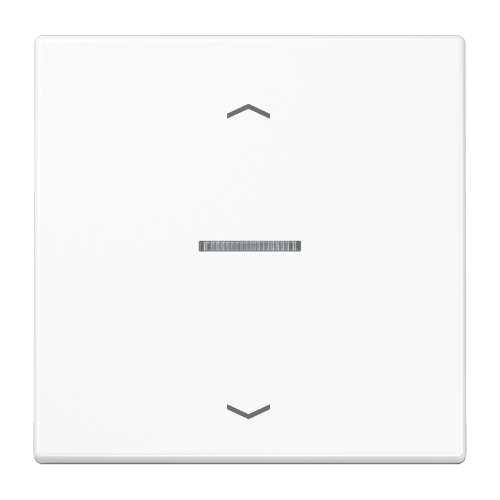

JUNG LS5232SWW Centre plate with anti lock-out function
Centre plate with anti lock-out function for motor control inserts ref.-no.: 230 ME, 232 ME and 224 ME
Centre plate with anti lock-out function for sensors ref.-no.: 32 SD and LA 90
Centre plate with anti lock-out function for extension flex ref.-no.: 32 K
The centre plate with activated “anti lock-out function†assures, that nobody can be shut out by automatic blinds (e.g. wind, alarm, brightness sensor, timer). A blind/shutter position can be set. The blind/shutter will stop at the desired position.
Function
- Short touch: UPPER or LOWER touch area for adjusting the slats, blind/shutter will be moved for the period the push-button is held, stopping the continuous moving
- Longer touch: LOWER touch area for continuous move downwards
- Longer touch (> 4 sec.): FULL touch area for activating the storing mode, UPPER touch area for activating the “anti lock-out function†(illuminated LED)
- Short touch: UPPER touch area for deactivating the “anti lock-out function". After mains failures the anti lock-out function is also deactivated
Sun protection
A sunlight sensor permits automatic lowering of the blind/shutter dependent on sunshine. The potentiometer on the reverse side of the centre plate enables the setting of the brightness value between approx. 5,000 and approx. 80,000 lux. Factory setting: 15,000 lux.
Are you looking for a different colour?
JUNG offer more colours than we are showing on the website:- IVORY - Centre plate with anti lock-out function Ivory ref.no.: LS 5232 S
- BLACK - Centre plate with anti lock-out function Black ref.no.: LS 5232 S WW
- LIGHT GREY - Centre plate with anti lock-out function Light Grey ref.no.: LS 5232 S LG
- ALUMINIUM - Centre plate with anti lock-out function Aluminium ref.no.: AL 5232 S
- ANTHRACITE - Centre plate with anti lock-out function Anthracite (aluminium lacquered) ref.no.: AL 5232 S AN
- STAINLESS STEEL - Centre plate with anti lock-out function Stainless Steel ref.no.: ES 5232 S AN
- CLASSIC BRASS - Centre plate with anti lock-out function Aluminium ref.no.: ME 5232 S C
- ANTIQUE BRASS - Centre plate with anti lock-out function Aluminium ref.no.: ME 5232 S AT
