Description

Push-button extension module

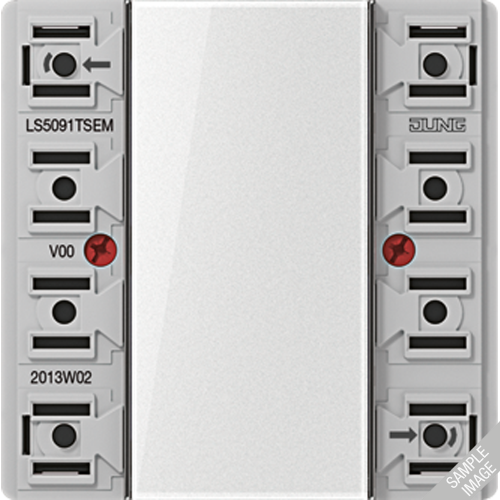

Push-button extension module including transparent cover ref.-no.: LS 50 NA

It is for the extension of the Universal push-button module (ref.-no.: LS 509x TSM) and room temperature controller module (ref.-no.: LS 5178 TSM) with up to 4 additional push-buttons.

Intended use

Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc
Installation in flush-box according to DIN 49073

Product characteristics

One or two functions per button
To be completed with cover kit
Inscription field can be illuminated
One status LED per button, red, green or blue, adjustable
One operation LED as orientation light and programming status - red, green or blue, adjustable
Brightness of status LED, operation LED and inscription field adjustable, can be changed during operation, e.g. during night times
Measurement of room temperature
Extension unit for room temperature controller
Inhibit function: Inhibit or function mode change of single or all button functions
Alarm function, optional acknowledge by pressing any button
Energy saving mode
Transparent cover kit (included) for temporary site use without design covers
Cable lenghts: max. 30 m, cable type: J-Y(St)Y 2 x 2 x 0.8 mm2

Included Products and Components

Universal push-button extension module ref.-no.: LS 5092 TSEM
Transparent cover ref.-no.: LS 50 NA (also available as a spare part)

Optional Accessories

Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW,AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA D-L
