Description

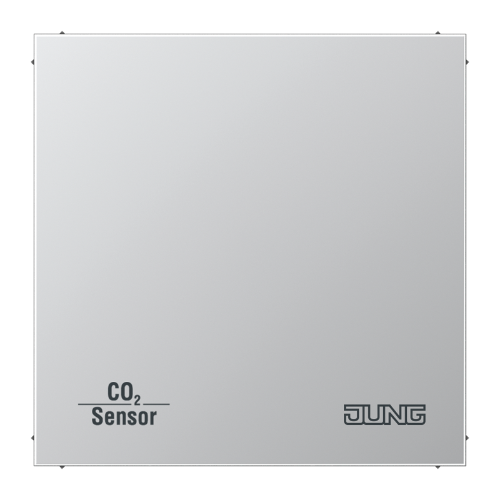

KNX CO2 sensor

It has integrated BCU, humidity sensor, room temperature controller and integrated push-button interface 2-gang.

Intended use

Measurement of CO2 concentration, relative air humidity and air temperature
Output of the measured values as telegram to the bus, e.g. for controlling fans or window drives via KNX telegrams
Single-room temperature control in KNX installations
Installation in appliance box according to DIN 49073

Limit value monitoring for CO2 concentration (max. 4 threshold values) and air humidity (max. 2 threshold values)
Dew point alarm e.g. for cooling blankets and conservatories, to avoid mould formation
Two binary inputs for connection of floating contacts e.g. buttons, switches, window contacts
Logic gates for simple gating functions

JUNG offer more colours than we are showing on the website:

IVORY - KNX CO2 sensor Ivory ref.no.: CO2 LS 2178
WHITE - KNX CO2 sensor White ref.no.: CO2 LS 2178 WW
LIGHT GREY - KNX CO2 sensor Light Grey ref.no.: CO2 LS 2178 LG
BLACK - KNX CO2 sensor Black ref.no.: CO2 LS 2178 SW
ANTHRACITE - KNX CO2 sensor Anthracite (aluminium lacquered) ref.no.: CO2 AL 2178 AN
DARK - KNX CO2 sensor Dark (aluminium lacquered) ref.no.: CO2 AL 2178 D
CHROME - KNX CO2 sensor Chrome ref.no.: CO2 GCR 2178
