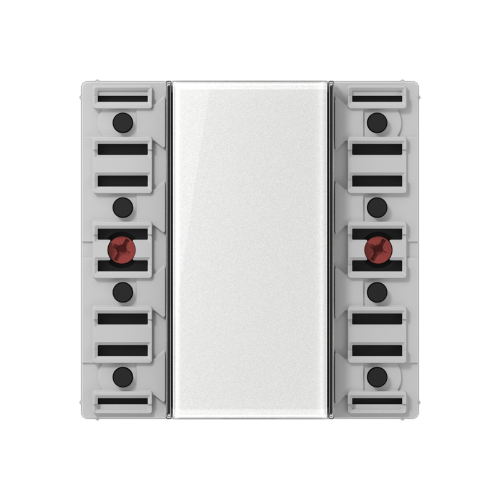

Universal push-button module 4-gang
Part Number: A5094TSM
Trade Price: £0.00
Price: £147.37
Description
Universal push-button module, 4-gang
Universal push-button module includes transparent cover ref.-no.: A 50 NA
It is compatible with cover kit 4-gang, complete, ref.-no.: A 504 TSA xx
It can be extended by means of a push-button extension module, ref.-no.:A 509 TSEM
ETS product family: Push-button
Product type: 4-gang push-button
Intended use
- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc
- Installation in flush-box according to DIN 49073
Product characteristics
- Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc
- One or two functions per button
- To be completed with cover kit
- Inscription field can be illuminated
- One status LED per button, red, green or blue, adjustable
- One operation LED as orientation light and programming status - red, green or blue, adjustable
- Brightness of status LED, operation LED and inscription field adjustable, can be changed during operation, e.g. during night times
- Measurement of room temperature
- Extension unit for room temperature controller
- Inhibit function: Inhibit or function mode change of single or all button functions
- Alarm function, optional acknowledge by pressing any button
- Energy saving mode
- Integrated bus coupling unit
- Connection for a push-button extension module, 1-4 gang
- Transparent cover kit (included) for temporary site use without design covers
Optional Accessories
Neutral cover ref.-no.: A 50 NA W, A 50 NA WW, A 50 NA SW, A 50 NA AL,A 50 NA CH, A 50 NA MOClick here to get in touch.
