Description

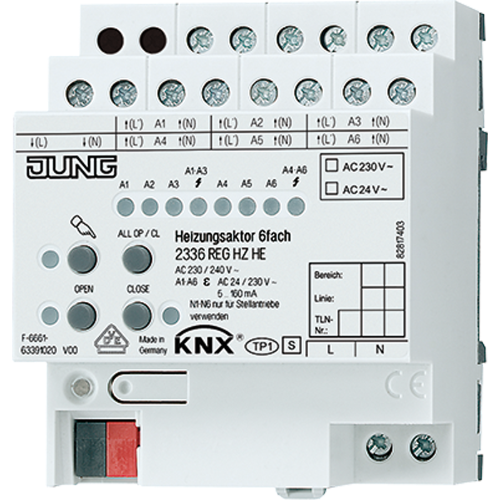

Heating actuator, 6-gang
Rail mounting device, 4 rail units
6 outputs "TRIAC"
With manual electronic operation and LED status indication
ETS product family: Heating, A/C, Ventilation
Product type: Valve
Intended use
- Switching of electrothermal actuators for heaters or cooling ceilings
- Installation in distribution boxes on DIN rail according to EN 60715
Product characteristics
- Switching operation or PWM operation
- Actuators with characteristics opened or closed without power
- Valve drives for 230 V or 24 V controllable
- Outputs can be operated manually, construction site mode
- Feedback in manual mode and in bus mode
- Disabling of individual outputs manually or via bus
- Overload-protected, short circuit-protected; error indication with LED
- Protection against jamming valves
- Forced position
- Various setpoints for forced position or emergency operation in case of bus failure for summer or winter
- Cyclical monitoring of the input signals can be parameterised
- Feedback via bus, e.g. in case of mains failure, overload or sensor failure
- Extended functions for optimisation of the heat demand (boiler and pump)
- 1 byte or 1 bit control value input
- Operation hour counter
- Support of "first open" function (see manual)
