Description

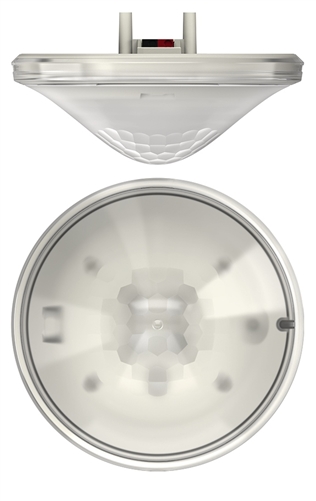

thePrema P360 KNX UP WH

KNX Passive infrared presence detector for ceiling mounting
Square detection range of 360Â° (up to 100 m2) for safe and easy planning
3 channel light and 2 channel presence
2 channel light C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
2 presence channels can be set individually
Adaptable 3 channel light measurement
Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
Can be used as fully or semi-automatic, switchable
Switch or constant light control mode with stand-by function
Dimmable lighting in switch mode with stand-by function
Brightness switching value or set point value can be set in lux using parameters, on the device itself or via remote control
Teaching in of the brightness switching value or the set point value
Room correction factor setting for Âbrightness measurement calibration
Light time delay can be set using parameters, on the device itself or via remote control
Switch on delay and time delay Âfor presence can be set
Detection sensitivity can be set
Self-learning time delay
Reduced time delay in the event of a shorter stay in the room (short presence)
Scenario functions
Extremely easy setting of energy saving characteristics with the new "eco plus" function
Test mode for checking function and detection range
Parallel switching of several detectors in Master/Slave or Master/Master possible
User remote control and management-remote control (optional)
Room monitoring
