Description

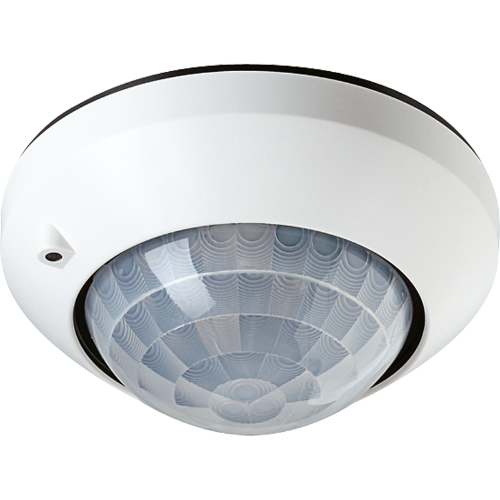

Presence detector
with integrated BCU
ETS product family: Physical sensors
Product type: Movement
Intended use
- Requirement-oriented control of lighting, room thermostats and other electrical loads in interior rooms
- Ceiling mounting on fixed ceilings in appliance box according to DIN 49073 or surface-mounted housing ref.-no.: PM-KAPPE-1 or PM-KAPPE AL-1
Product characteristics
- Integrated bus coupling unit
- 3 PIR sensors
- Detection field 360° (3 x 120°)
- Integrated brightness sensor
- Deployed as presence detector, motion detector, or for alert operation
- Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Detection area extendible by parallel switching of several devices as main unit or extension unit
- Manual sensitivity adjustment
- Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
Additional characteristics of "Universal" version
- Manual operation with IR remote control possible (ref.-no.: KNX PM FB IR)
- 5 function blocks for motion or presence detection each with 2 outputs
- Function blocks switchable, e.g. for day/night operation
- PIR sensors can be evaluated separately
- Brightness sensor function with 3 limiting values
- Light control with max. 3 channels, setpoint shift in operation, separate configuration of dimming-up, control and dimming-down phase
- Light control can be combined with presence detector function
Presence detector function
- Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded
Motion detector function
- Motion detection for passageways in buildings
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed
-
After reacting and switching on, the motion detection works independently of the brightness.
Signalling mode
- Brightness-independent detection of motions in the detection field
- Switch on: After detection of an adjustable number of motions within the set monitoring period
- Switch off: No persons in the detection field and shut-off delay elapsed
Optional Accessories
- Protection cage ref.-no.: SK 180-90 WW
- Surface-mounted housing ref.-no.: PM-KAPPE-1, PM-KAPPE AL-1
Are you looking for a different colour?
JUNG offer more colours than we are showing on the website:
-
UNIVERSAL ALUMINIUM - Universal Presence detector Aluminium (lacquered) ref.no.: 3361-1 AL
-
STANDARD ALUMINIUM - Standard Presence detector Aluminium (lacquered) ref.no.: 3361 AL
-
STANDARD WHITE - Standard Presence detector White ref.no.: 3361 WW
