KNX is the world’s only open standard for home and building control that has been adopted, at last count, by 405 Manufacturers from 41 different Countries. Together these manufacturers provide customers with a vast range of choice for KNX-certified products. These devices and components enable a single system solution (combining lighting, heating, blinds / shutters, security systems, ventilation and air-conditioning systems, signalling and monitoring systems, remote control, metering, audio / video control etc) on one platform.

What Are The Key Advantages of KNX?

KNX is the Worldwide STANDARD for Home and Building Control.

What Are The Key Advantages of KNX?

KNX Product Certification guarantees Interoperability & Interworking of products.

What Are The Key Advantages of KNX?

KNX is Independent from any hardware or software technology.

Why choose KNX for your business?

The Smart home market will continue to be one the fastest growth areas in the building trade. It is expected to be just under 1 Billion dollars (£800 million) in the UK this year alone and is expected to grow at just under 30% annually to 2021, reaching a household penetration of 40%.The KNX Association saw a 30% increase in Certified KNX installers (Partners) across 160 Countries. A total of 7,344 – of which the UK was 11th/12th.

ABB New Valve Drive Controller

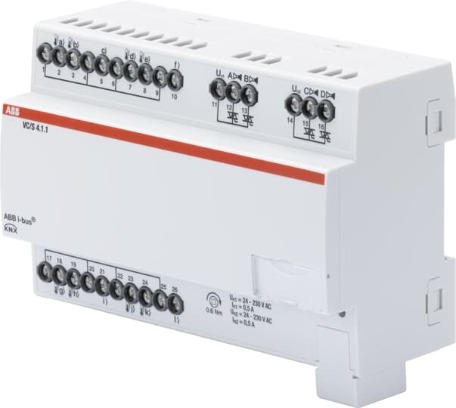

VC/S4.1.1 Valve Drive Controller, 4-fold, MDRC or VC/S4.2.1 Valve Drive Ctrl,4-f,mO

VC/S4.1.1 (£270.60)

VC/S4.1.1 Valve Drive Ctrl,4-f

Product ID: 2CDG110216R0011

For the control of heating and cooling applications in the room, such as radiator, floor heating or cooling ceiling. The device has 4 channels each for the independent control of a heating or cooling application. Each channel has an electronic valve output for the control of a thermoelectric valve drive, as well as 3 inputs to detect and monitor the room status (use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of each channel. Each channel has its own integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device.The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.

Buy VC/S4.1.1 Datasheet

VC/S4.2.1(£370.32)

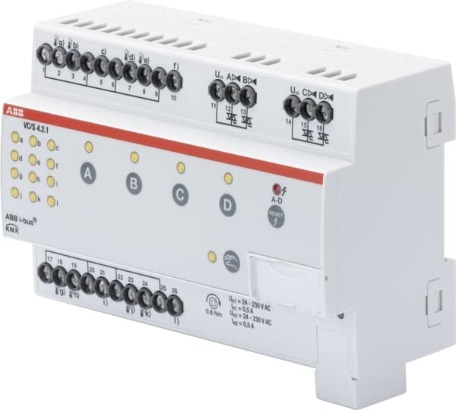

VC/S4.2.1 Valve Drive Ctrl,4-f,mO

Product ID: 2CDG110217R0011

For the control of heating and cooling applications in the room, such as radiator, floor heating or cooling ceiling. The device has 4 channels each for the independent control of a heating or cooling application. Each channel has an electronic valve output for the control of a thermoelectric valve drive, as well as 3 inputs to detect and monitor the room status (use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of each channel. Each channel has its own integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The VC/S 4.2.1 features an easy to use manual operation.The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.Categories

Buy VC/S4.2.1 Datasheet

System Infrastructure and Interfacing

Datesheet
