KNX is the world’s only open standard for home and building control that has been adopted, at last count, by 405 Manufacturers from 41 different Countries. Together these manufacturers provide customers with a vast range of choice for KNX-certified products. These devices and components enable a single system solution (combining lighting, heating, blinds / shutters, security systems, ventilation and air-conditioning systems, signalling and monitoring systems, remote control, metering, audio / video control etc) on one platform.

What Are The Key Advantages of KNX?

KNX is the Worldwide STANDARD for Home and Building Control.

What Are The Key Advantages of KNX?

KNX Product Certification guarantees Interoperability & Interworking of products.

What Are The Key Advantages of KNX?

KNX is Independent from any hardware or software technology.

Why choose KNX for your business?

The Smart home market will continue to be one the fastest growth areas in the building trade. It is expected to be just under 1 Billion dollars (£800 million) in the UK this year alone and is expected to grow at just under 30% annually to 2021, reaching a household penetration of 40%.The KNX Association saw a 30% increase in Certified KNX installers (Partners) across 160 Countries. A total of 7,344 – of which the UK was 11th/12th.

ABB i-bus KNX

UD/Sx.210.2.1 LED dimmer 4 x 210 W/VA 1-4 fold or 6 x 210 W/VA 1-6 fold

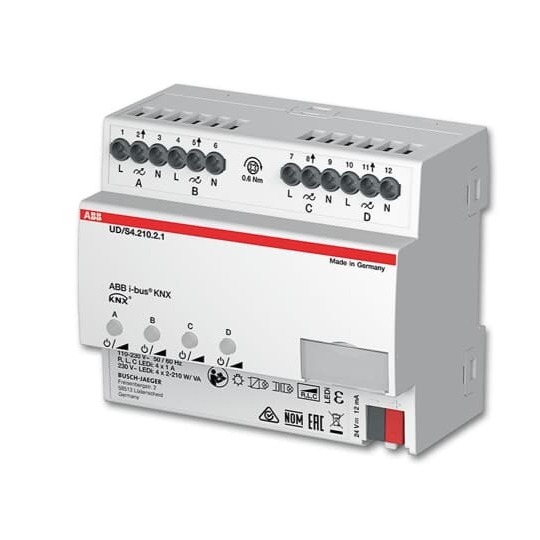

UD/S4/210.2.1 (£507.14)

LED dimmer 4 x 210 W/VA 1 to 4gang

Product ID: 2CKA006197A0047

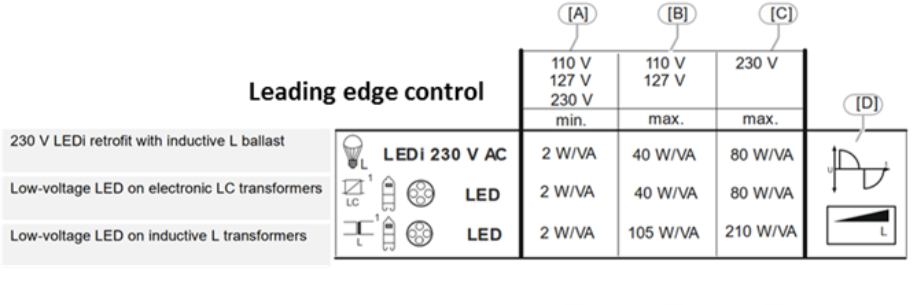

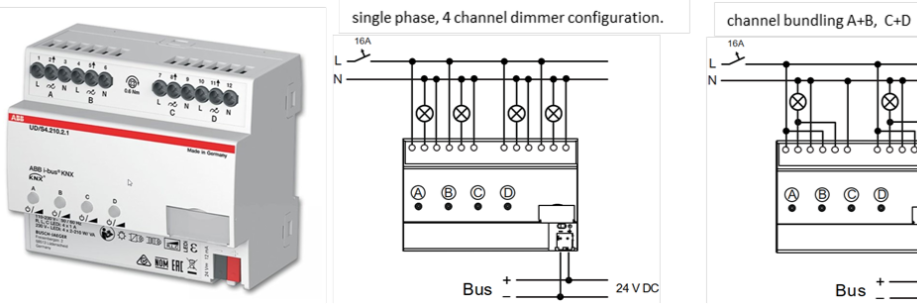

Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase the output power. Outputs can be connected in parallel in any configuration.

BUY UD/S4/210.2.1

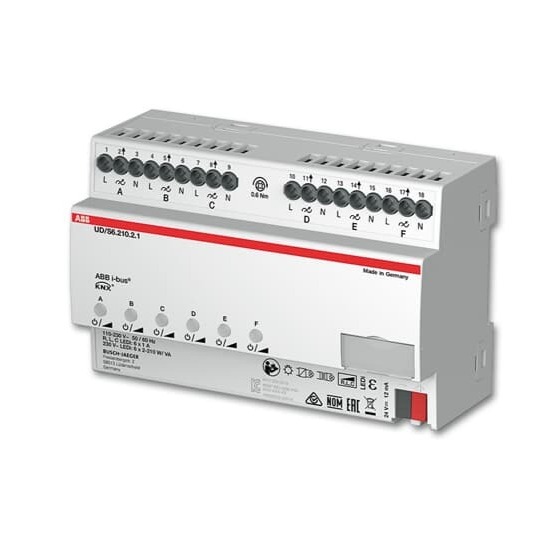

UD/S6/210.2.1 (£660.57)

LED dimmer 6 x 210 W/VA 1 to 6gang

Product ID: 2CKA006197A0049

Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase the output power.

Buy UD/S6/210.2.1

System Infrastructure and Interfacing

Datesheet
