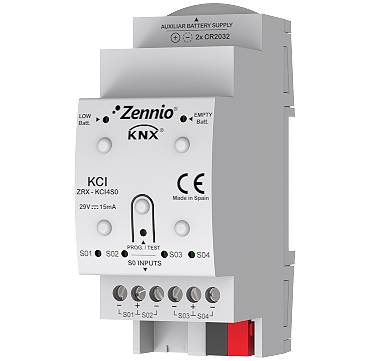

KCI KNX Interface
Part Number: ZRX-KCI4S0
Price: £109.48
Description
KCI. KNX Interface for 4 consumption meters with S0-pulsse outputs
KNX Consumption Interface (KCI) is the Zennio KNX interface for four consumption meters with S0-pulse outputs to monitor their electricity (energy and power), water and/or gas (volume and flow rate) consumption measure in the KNX bus. A removable battery allows buffering S0 pulses during a KNX power failure and recovers the real consumption afterwards. LED indicators make the user able to check the existence of communication through each S0 channel, as well as the battery status (low battery and/or run out of battery), which is also indicated in the KNX bus. DIN rail mounting device (2 DIN rail units)
FEATURES
- 4 channels for consumption counters (meters) with S0-pulse outputs (UNE-EN 62053-31).
- Registration of consumed electric power, cost and CO2 emissions that can be split in up to 4 time intervals.
- Compliant with UNE-EN 62053-31 Class B.
- Total data saving on KNX bus power failure.
- KNX BCU integrated.
- Size 90 x 60 x 35 mm (2 DIN units).
- DIN rail unit assembly (EN 50022), with snap fit clamp.
- CE directives compliant.
