Description

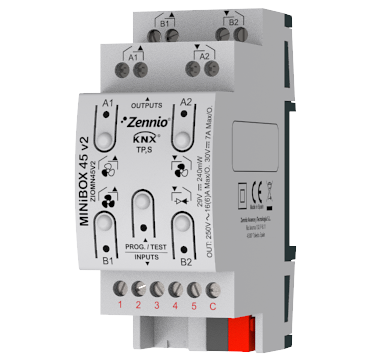

Multifunction actuator with 4 outputs (16A) and 5 analog-digital inputs
Multifunction actuator for DIN rail (2 units) with 4 outputs (16A C-load) which offers multiple configurations as shutter channels and individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module. MINiBOX 45 also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems.
FEATURES
- 4 configurable outputs: shutter channels (up to 2) and individual outputs (up to 4)
- Outputs suitable for capacitive loads, maximum 140 μF5 analog/digital inputsManual output operation with push button and LED Status indicator
- 10 logic functions
- Output timing
- 4 thermostats
- Total data saving on KNX bus failure
- Integrated KNX BCU
- Dimensions 67 x 90 x 35 mm (2 DIN units)
- DIN rail mounting (EN 50022), with fixing clamp
- Possibility of connecting different phases in adjacent outputs
- Conformity with the CE directives (CE-mark on the right side)
