MAXinBOX 66 v2
Part Number: ZIOMB66V2
Trade Price: £0.00
Price: £261.00
Description

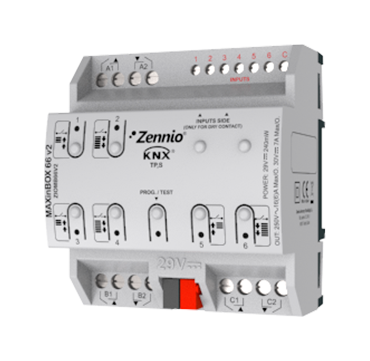

MAXinBOX 66 v2 - Multifunction Actuator 6 Out. 16 A C-Load / 6 In.
Multifunction sensor-actuator for DIN rail (4.5u) with 6 outputs (16A C-load) which offer multiple configurations as shutter channels or individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 6 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Four room thermostats to control heating/cooling systems are included.
FEATURES
Multifunction sensor-actuator for DIN rail (4.5u) with 6 outputs (16A C-load) which offer multiple configurations as shutter channels or individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 6 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Four room thermostats to control heating/cooling systems are included.
FEATURES
• 3 different configurable channels: shutter channels (up to 3) and individual
outputs (up to 6)
• Outputs suitable for capacitive loads, maximum 140 µF.
• 6 analog/digital inputs.
• Manual output operation with push button and LED Status indicator.
• 10 logic functions.
• Output timing.
• Total data saving on KNX bus failure.
• Integrated KNX BCU.
• Dimensions 67 x 90 x 79 mm (4.5 DIN units).
• DIN rail mounting (EN 50022), with fixing clamp.
• Possibility of connecting different phases in adjacent outputs.
• Conformity with the CE directives (CE-mark on the right side).
