Lumento DX4
Part Number: ZDI-RGBDX4
Trade Price: £0.00
Price: £203.00
Description
LED dimming 4 channels and DIN rail mounting

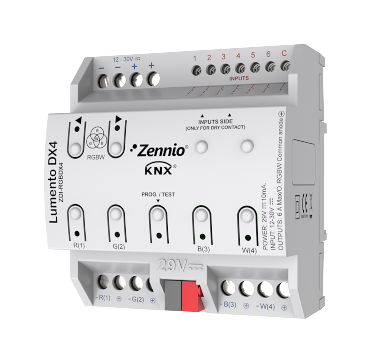

LED dimmer with 4 channels (RGBW or single channels) oriented to LED technology with constant voltage regulation and DIN rail mounting (4,5 units). The dimming channels can be configured as 4 independent channels, 1 RGBW channel or 1 RGB channel + 1 individual channel. It includes 6 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons or as motion sensor inputs. It has manual test buttons to check the channels functioning. Power supply: 12-30VDC. Maximum current per channel: 6 A.
FEATURES
-
4 constant voltage channels configurable as:
- 4 independent LED channels.
- 1 RGBW channel.
- RGB + W channels.
-
6 inputs configurable as:
- Binary inputs.
- Motion detector with luminosity sensor.
- Master Light Control.
- External 12-30VDC power supply required.
- Total data saving on KNX bus failure.
- Manual control through buttons and status indicator LED.
- Integrated KNX BCU.
- Dimensions 67 x 90 x 79mm (4.5 DIN units).
- DIN rail unit assembly (EN 50022), through pressure.
- Conformity with the CE directives.
