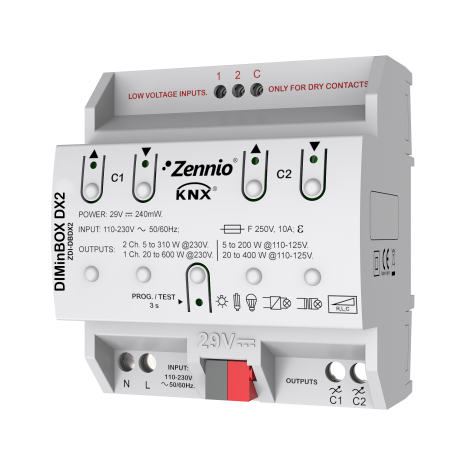

DIMinBOX DX2
Part Number: ZDI-DBDX2
Trade Price: £0.00
Price: £180.00
Description
Universal dimming actuator (RLC, LED, CFL) for DIN rail
Universal dimming actuator (RLC, LED, CFL) for DIN rail (4.5u): 2 channels for up to 310W or 1 channel for up to 600W @ 230VAC (2 channels for up to 200W or 1 channel for up to 400W @ 110-125VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 2 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Error detection: short circuit, voltage surge, overheating, anomalous frequency, supply voltage failure, parameterization error. Accessories: Temperature probes and motion sensor.
FEATURES
- 2 Channels for R L C loads and for dimmable CFL and LED lamps.
- Automatic detection of R L C load type.
- Automatic frequency detection.
- Dimming pattern selection for CFL and LED lamps.
- Optional manual dimming control.
- 2 analog/digital inputs.
- Total data saving on KNX bus failure.
- Integrated KNX BCU.
- Dimensions: 60 x 90 x 79mm (4.5 DIN rail units).
- DIN rail mounting (EN 50022), through pressure.
- Conformity with the CE directives
