Description

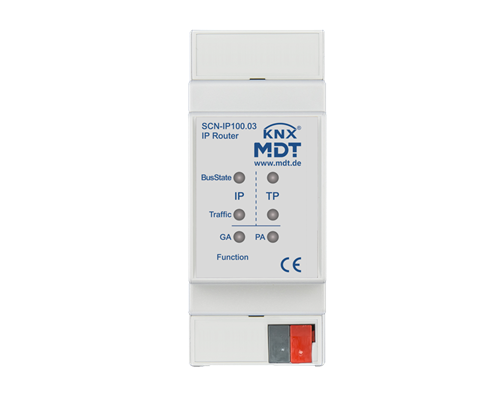

MDT IP Router with IP Secure and Data Secure, 2SU MDRC, with email and time server functions

This interface offers the same functions as the IP Interface, but the device routes telegrams as a line/area coupler using the the LAN.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
To enable communication between PC and the KNX bus TCP/IP
4 simultaneous connections possible
Programming the KNX bus via TCP/IP
Power supply by KNX bus, no external bus power supply required
Encrypted transmission at sending emails
Time server functions to send time and date on the KNX bus
Firmware can be updated
Supports extended group addresses
KNX IP Secure and KNX Data Secure (from ETS 5.7)
Secure access to the KNX bus through IP Secure with security key
Quick application download (long frame support with ETS 5 or higher)
Integrated bus coupling unit
3 years warranty
